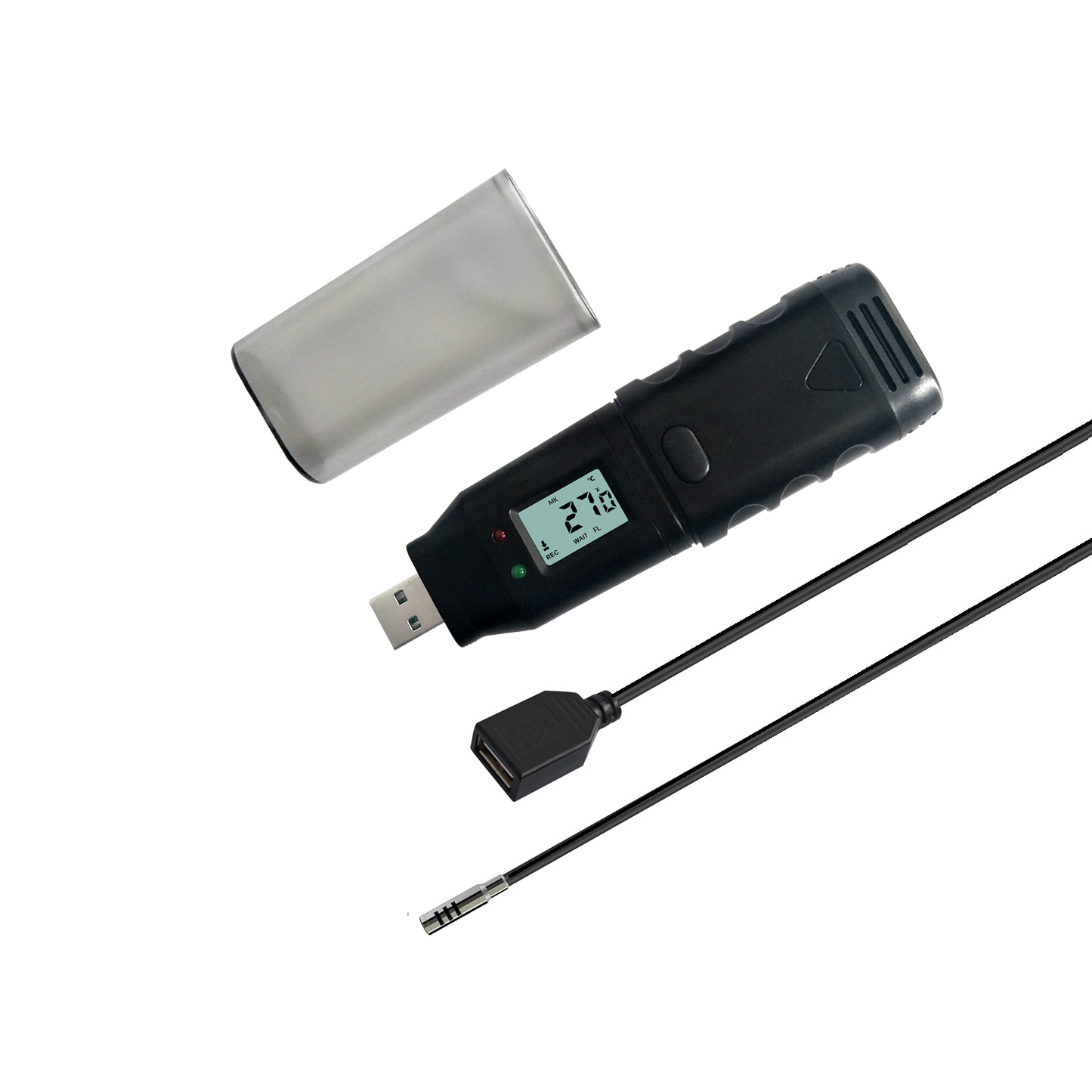

6.2 Multi-Use Temp+RH USB PDF Data Logger w/ Display & Ext Probe

Regular price
$198.69
Regular price
Sale price
$198.69
  • External RH+T probe & Self-generated PDF report
  • Measurement range: -40°C to 70°C & 0.1%rh to 99.9%rh
  • Accuracy: Basic T: ±0.3°C, RH: ±2.5%rh (20%rh to 80%rh), ±3.5%rh (else)
    • Optional T: ±0.2°C, RH: ±2.0%rh (20%rh to 80%rh), ±3.0%rh (else)
  • PC software for configuration & data analysis & calibration
  • Storage capacity up to 25920 records
  • Non-volatile memory & No data loss when power off
  • LCD display & LED status and alarm indication
  • Sampling interval: 10 seconds to 18 hours
  • 3.6V non-rechargeable battery, user replaceable
  • Protection Class: IP40 & Certification: CE, ROHS, EN12830, REACH
  • Calibration report included with each unit
  • Test points: 20%rh, 50%rh and 80%rh @ 25°C and 25°C on the report
Accuracy: T: ±0.2°C ; RH: ±2.0%rh (20%rh to 80%rh) ; ±3.0%rh (else)
Sku: 36576-2

Package: 5 pieces

Shipping: 2-3 weeks

6.2 Multi-Use Temp+RH USB PDF Data Logger w/ Display & Ext Probe
6.2 Multi-Use Temp+RH USB PDF Data Logger w/ Display & Ext Probe
  • Description
  • Specifications
  • Manual and Resources

External T+RH sensor, configurable, PDF auto-generation 

This multi-use temperature and humidity data logger’s accuracy is T: ±0.3°C, RH: ±2.5%rh (20%rh to 80%rh), ±3.5%rh (else) (optional T: ±0.2°C, RH: ±2.0%rh (20%rh to 80%rh), ±3.0%rh (else) covering its range, -40°C to 70°C and 0.1%rh to 99.9%rh with IP40 protection. It can be easily configured using the PoChain software (available for download on the website) and starts logging immediately or with a delay, depending on your preferred configuration.

After the logging task is completed, connect the data logger to any computer with a USB port, and a PDF file will be generated automatically.  

Data analysis & Data Export

Once connected to a computer with installed PoChain software, this data logger allows for efficient and comprehensive data analysis and exportation in various forms such as xls, csv, pdf, txt, and cin, to a designated location on the user's computer.

Up to 6 marker points

This data logger supports data marking up to 6 points. In the process of logging, the user can use the key to enter mark mode (MK), then press the key to mark the data.

Re-calibratable assures long time use in tolerance

Each unit is shipped with a calibration report to assure accuracy from an ISO/IEC 17025:2017 conforming calibration laboratory and indicate traceability of measurements to the SI units through  NIST. The temperature and humidity parameters can be recalibrated by PoChain software with up to 6 points calibration by any lab with calibration capability (not recommended to be done by user) or our lab as well.  

Application

This temperature and humidity data logger is a good choice for a wide range of applications including transportation, storage, production, HVAC and others.

Probe type

External RH+T probe

Unit

°C, °F & %rh

Resolution

0.1°C & 0.1%rh

Measurement range

-40°C to 70°C & 0.1%rh to 99.9%rh

Accuracy

Basic T: ±0.3°C, RH: ±2.5%rh (20%rh to 80%rh), ±3.5%rh (else)
Optional T: ±0.2°C, RH: ±2.0%rh (20%rh to 80%rh), ±3.0%rh (else)

Report generation

Automatic pdf report generation

Export file formats

pdf, txt, xls, csv, cin

Data storage capacity

25920

Memory

Non-volatile memory, no data loss when power off

LCD refresh interval

10 seconds

LCD display auto-off time

3 minutes

Sampling interval

User configurable from 10s to 18 hours

High and low alarm values

User configurable

Alarm delay

User configurable from 0 to 960 mins

Alarm type

Single time or cumulative, user configurable

Start delay

User configurable from 0 to 254 mins

Start recording mode

Press and hold the button for about 3 secs

Stop recording mode

Press button to stop;

Automatic stop when the memory is full;

When connected to a computer

Operation/storage temperature

-40°C to 70°C

Communication interface

USB 2.0

PC Software

Software PoChain (Windows 7/8/Vista/10 32/64bits) website downloadable

Power supply

3.6V lithium battery, user replaceable

Battery life

About 3 years @15 minutes sampling interval, 25°C

Protection Class

IP40

Shell material

ABS

Dimensions/weight

120mm*37mm*23mm/67g

Certification and standards

CE | ROHS | EN12830 | REACH

Calibration

Max. 6 points calibration by software

Calibration report

Calibration report included with each unit

Test points

20%rh, 50%rh and 80%rh @ 25°C and 25°C on the report
