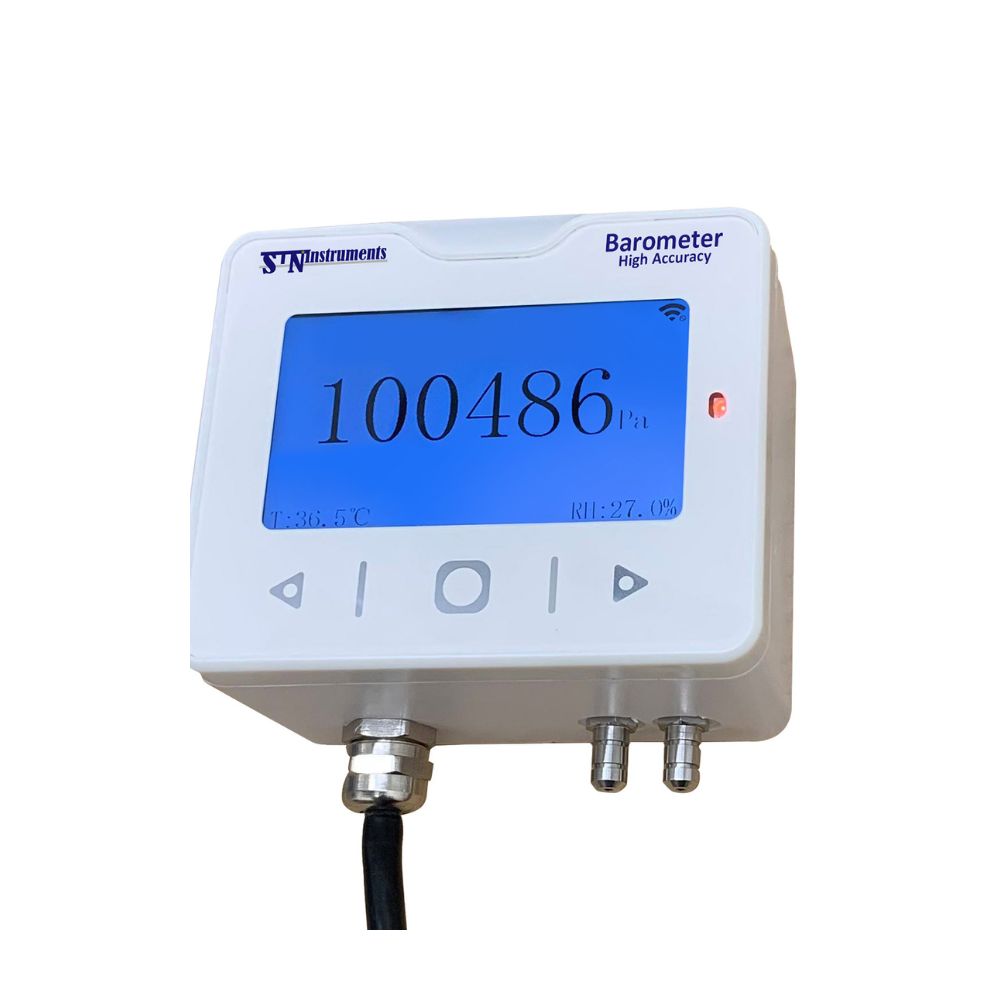

High Accuracy Barometer

$1,290.00
$1,290.00
  • Pressure range: 800hPa to 1060hPa
      (Custom manufacturing pressure ranges available)
  • High total accuracy:
      • ±20Pa (temp range 5°C to 35°C)
      ±40Pa (temp range -20 to 5°C & 35 to 50°C)
      ±80Pa (temp range -40 to -20°C & 50 to 70°C)
  • Repeatability: better than 0.003%FS
  • Linearity: better than ±0.005%FS
  • Long term stability: better than ±20Pa/year
  • Output: 0~5V/0~10V (Min load 1KΩ)，4~20mA
      • (Max load 500Ω), RS485, Relay
  • Display: 3 inch TFT LCD
  • Software: RS485 and WI-FI
  • CE and EMC certified, conform to EN61326
  • IP Protection: IP65
Sku: 49200

Package: 5 pieces

Shipping: 2-3 weeks

High Accuracy Barometer
High Accuracy Barometer

$1,290.00
  • Description
  • Specifications
  • Manual and Resources

This high accurate barometer is calibrated by using reference barometer standard with deviation better than 2Pa. Its excellent stability makes it a good choice for barometric pressure, altitude, weather monitor and building pressure monitoring.

The big digit display makes it easy to take readings. The customer friendly software can display real-time readings on the computer. By WI-FI connection, the computer can display maximum 40 barometers real-time data.

For high accurate barometric pressure measurements, considering the difference and uncertainty among different primary standards, this barometer is designed with offset correction from the menu which makes it easier to make adjustments.

Pressure ranges

800hPa to 1060hPa (Cutom available at range 500hPa to 1300hPa)

Temperature range

-40°C to 70°C

Humidity

<95%rh non-condensation

Measurement Linearity

±0.005%FS

Repeatability

±0.003%FS

Hysteresis

±0.005%FS

Accuracy

±0.02%FS

Long term stability

±0.02%FS/year

Calibration uncertainty

±0.15hPa

Analogue output

4 to 20mA (Max load resistance 500 ohms) 0 to 5V, 0 to 10V (min load resisstance 1K ohms) Optional Relay on/off

Serial output

RS485

Output protocol

Modebus - RTU

Baud rate

9600

Digit bits

8

Stop bits

1

Parity bits

None

Display

3 inch TFT LCD

Response

0.3 seconds

WI-FI

Local

Dimensions

90mmX75mmX50mm

Weight

350g

IP Protection

IP65

Power supply

12 to 36V DC

Consumption

5W

Standards

CE, EN61326

Output wire

6 core cable, max diameter 6mm

Material

resin

Color

White

Datasheet
