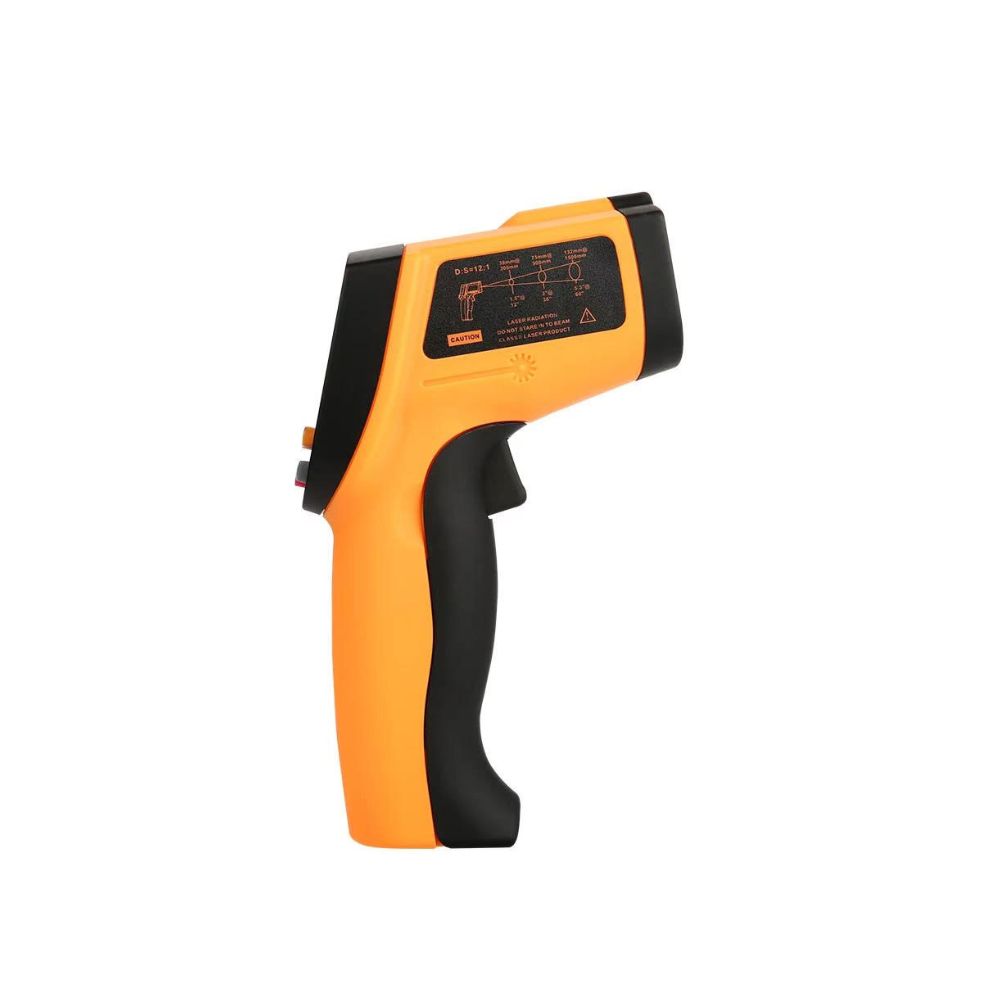

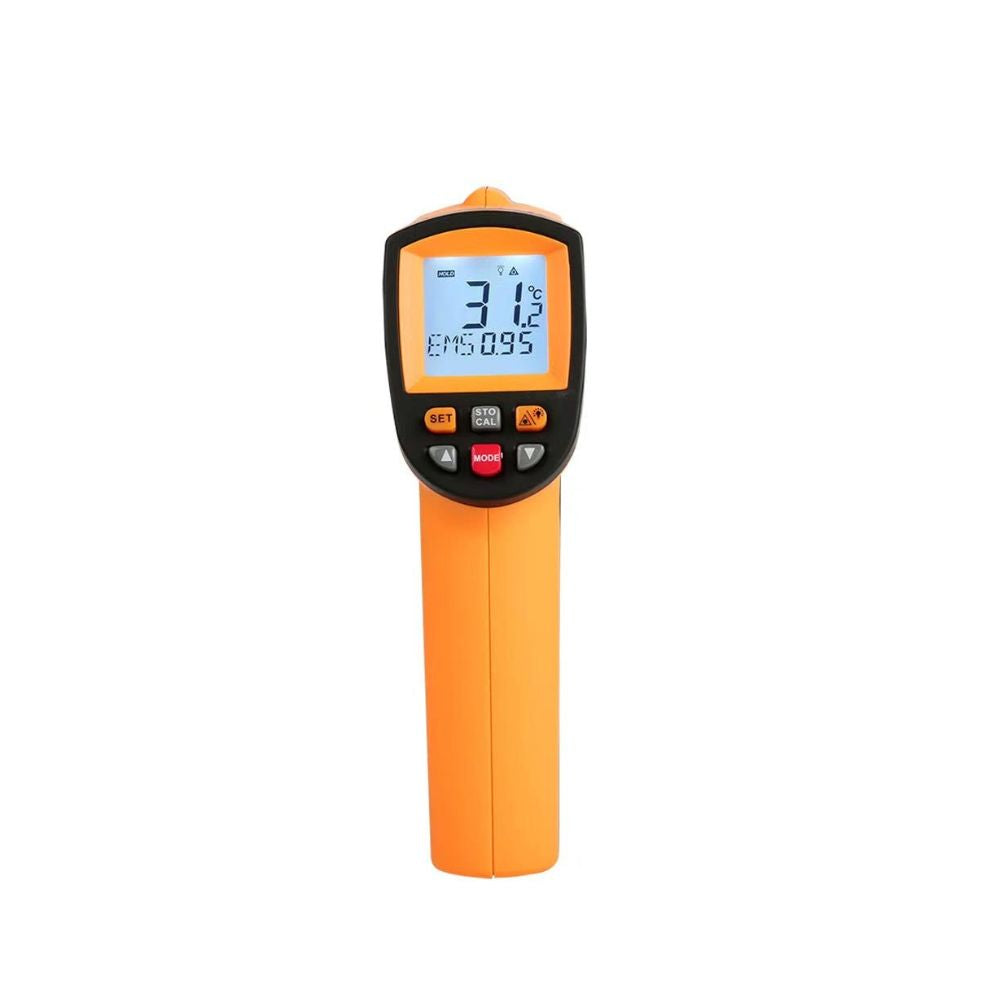

Infrared Thermometer -50°C to 950°C with Adjustable Emissivity

Regular price
$117.00
Regular price
Sale price
$117.00
  • Measurement range: -50°C to 950°C (-58°F to 1742°F)
  • Accuracy: ±1.5°C or ±1.5% (0°C to 950°C),
    • ±3 °C (-50°C to 0°C) Whichever is greater
  • Emissivity: 0.1-1.00 Adjustable (0.95 preset)
  • Distance to Spot size: 12:1
  • Response time: 500mSec, 95% response
  • Data storage: 30 groups memory available
  • Data hold function
  • Laser on/off selectable
  • Backlight on/off selectable
  • Auto power off
  • Battery power indicator
  • Max, Min and avg measuring temperature display
  • Low/high alarm value setting
  • Compute and display the difference
  • Calibration report included with each unit
Sku: 74423

Shipping: 2-3 weeks

Infrared Thermometer -50°C to 950°C with Adjustable Emissivity
Infrared Thermometer -50°C to 950°C with Adjustable Emissivity

$117.00

  • Description
  • Specifications
  • Manual and Resources

This infrared thermometer is designed to measure the surface temperature of objects, making it suitable for a range of hot, hazardous, or difficult-to-access items without direct contact, ensuring both safety and efficiency.

The device comprises an optical system, a temperature sensor signal amplifier, a processing circuit, and an LCD display. The optical system captures the infrared energy emitted by the object and directs it onto the sensor. Subsequently, the sensor converts this energy into an electrical signal, which is then processed and displayed digitally on the LCD after passing through the signal amplifier and processing circuit.

The instrument is capable of showing the maximum, minimum, and average measured temperatures, as well as calculating and displaying the difference between the current and previous readings. It offers 30 memory groups for data storage, and users can easily retrieve stored data in normal measuring mode by pressing the STO button.

--Built-in auto power off in 7sec inactivity

--Backlight makes reading easier

--Emissivity can be set from 0.1 to 1.0 (0.95 preset)

--°C /°F switch

Temperature range

-50°C to 950°C (-58°F to 1742°F)

Accuracy

±1.5°C or ±1.5% (0°C to 950°C), ±3 °C (-50°C to 0°C) Whichever is greater

Resolution

0.1°C or 0.1°F

Repeatability

1% of reading or 1°C

Response time

500mSec, 95% response

Spectral response

8-14um

Emissivity

0.1-1.00 Adjustable (0.95 preset)

Distance to spot size

12:1

Operating temperature

0°C to 40°C (32°F to 104°F)

Operating humidity

10-95%RH (non-condensing)

Storage temperature

-20°C to 60°C (-4°F to 140°F)

Power supply

9V alkaline or NiCd battery

Typical battery life (Alkaline)

22hrs (Non-laser mode); 12 hours (laser mode)

Dimensions

165mm*115mm*48mm

Weight

190g
